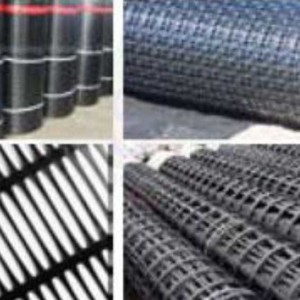

HSPE Uniaxial Plastic Geogrid

Introduction:
HDPE Uniaxial Plastic Geogrid is used HDPE as its raw material, produced through extruding, puncing, heating, stretching.Performance:
1.High tensile strength 2.Low creep deformation

Application:
Reinforcing for retaining wall, dam, deck, steep slope projects of highway, railway and shore.

Function:
1. Improve the bearing capacity of retaining wall or dam;
2. Extending the project life
3. Reducing floor area;
4. Shortening construction period, reducing cost and maintaining expence.

Specification and Main Technical Data:

Item	PEUG35	PEUG50	PEUG80	PEUG110	PEUG14	PEUG16
TensileStrength (KN/m ≥)	35	50	80	110	140	160
Yield Elongation( % ≤)	11.5
Tensile Strength at2% Elongation (KN/m ≥ )	7.5	12	21	30	38	47
Tensile Strength at5% Elongation (KN/m ≥)	21.5	23	40	60	75	93
Length(m)	50
Width(mm)	1000, 1100
